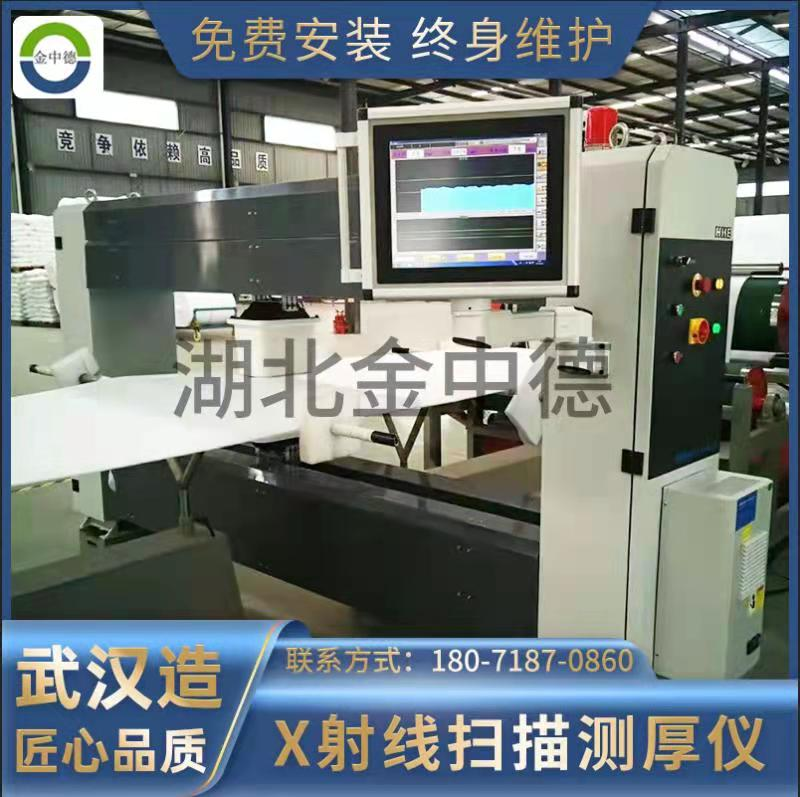

一、金中德HHE-TJ2015(V1.2)薄膜厚度和定量在线测量量扫描仪概述
1.金中德HHE-TJ2015 (V1.2) Scanner
Summary of film thickness and weight on-line measuring scanner
湖北省金中德科技机械设备有限责任公司研发的薄膜厚度和定量在线测量仪，采用低辐射 Soft-X Ray 技术，先进的分析算法和计算机数据采集系统，完成对薄膜厚度和定量的在线精确测量。
The film thickness and weight on-line measuring scanner is researched & developed by Hubie jinzhongde Electric Equipment Co., Ltd. Adopting low radiation Soft-X-Ray technology, advanced algorithm analyzing method and SCADA system, it is successfully applied in the on line accurate measurement of film thickness and weight.
Soft-X Ray 放射量低，而且随电源的关闭放射性即可消失，是符合国家环保免检要求的高科技光电子检测仪器，无需办理放射性专用许可证等手续；由于放射量可控，因此测量范围宽，并有可调性，精度高，是替代固定放射源的一项新技术。
Soft-X Ray is low radiation and the radioactivity will disappear upon turn-off the power. It is high tech photoelectron detector in line with the state environmental protection inspection requirements, and no need to apply for a special license for radioactive. Because radiation quantity is controllable, so the measuring scope is wide; as well as adjustable and high accuracy, it is a new technology to replace the stationary source(for exam:Kr85 ,pm147 etc).
本测量仪器是专门设计应用于薄膜生产线，通过反馈信号自动控制模头螺栓，使薄膜厚度均匀，提高产品质量，降低原材料消耗。
This measuring scanner is specially designed for applying to film production line. Auto-control die head bolt by feedback signal, it makes the film thickness uniform, so as to improve production quality and reduce raw material consumption.
产品应用范围： 双向拉伸生产线：BOPP，BOPET，BOPS，BOPA 等 ;CPP 流延膜生产线 ;挤出片材生产线 ;PVC 压延生产线 ;涂布生产线 ;纤维、钢丝帘布四辊压延生产线 ;无纺布生产线 ;浮法玻璃生产线 ; 玻纤生产线;造纸生产线等.
It’s applying scope is, bidirectional drawing production line: BOPP，BOPET，BOPS，BOPA etc; CPP cast film production line; extrusion sheet production line; PVC calendering line; coating production line; Fiber, steel cord four roller rolling production line; non-woven fabric production line; float glass production
line; glass fiber production line; paper-making production line, etc.
二．金中德HHE-TJ2015(v1.2)薄膜测厚和定量扫描仪主要特点：
2.Main features of HHE-TJ2015(v1.2) film thickness and weight measurin scanner
1) 高精度，非接触在线薄膜厚度、克重测量 ：厚度测量精度 CD（横向）方差值+0.1um,MD（机械方向）精
度+0.3um;克重测量误差小于 0.5%；
1)High accurary , non-contact on-line film thickness and weight measuring: thickness measuring accuracy CD (transverse) variance value is +0.1um, MD (machine direction) accuracy +0.3um; weight measuring deviation less than 0.5%.
2)功能强大的 HHE-TJ2015 控制系统，分析产品生产过程的缺陷和质量 ，降低原料的浪费；
2)Powerful HHE-TJ2015 control system, to analyze product defect and quality in the course of production and reduce raw material waste.
3)高精度探头：Soft-X Ray 射线探头（带温度自补偿和自校准）；
3)High accuracy detector: Soft-X Ray radiation detector (With temperature self compensation and self calibration);
4)智能扫描架通过以太网同主机相连 ，接线简单方便；
4)The intelligent scanner connect to the host via Ethernet, the connection is simple and convenient.
5）新开发的 HHE-TJ2015(V1.3)版系统，采用以太网的客户机-服务器架构，可以实现多机联网操作、远程诊断、DCS 和ERP 数据共享等；与翰海电气自主开发的微物料自动称量系统(HHE-ABS 系统)配合使用，可以实现生产线的全自动上料、单探测多层厚度测量、质量管理及过程控制功能；
5)Adopting the framework of Ethernet client-server, the new developed HHE-TJ2015(V1.3) version system can realize multi machine operate, remote diagnosis, DCS &ERP data sharing, etc. With the use of micro material automatic weighing system (HHE-ABS) independent developed by HHE together, it can realize full automatic feeding of production line, single probe multilayer thickness measurement, quality management and process control.

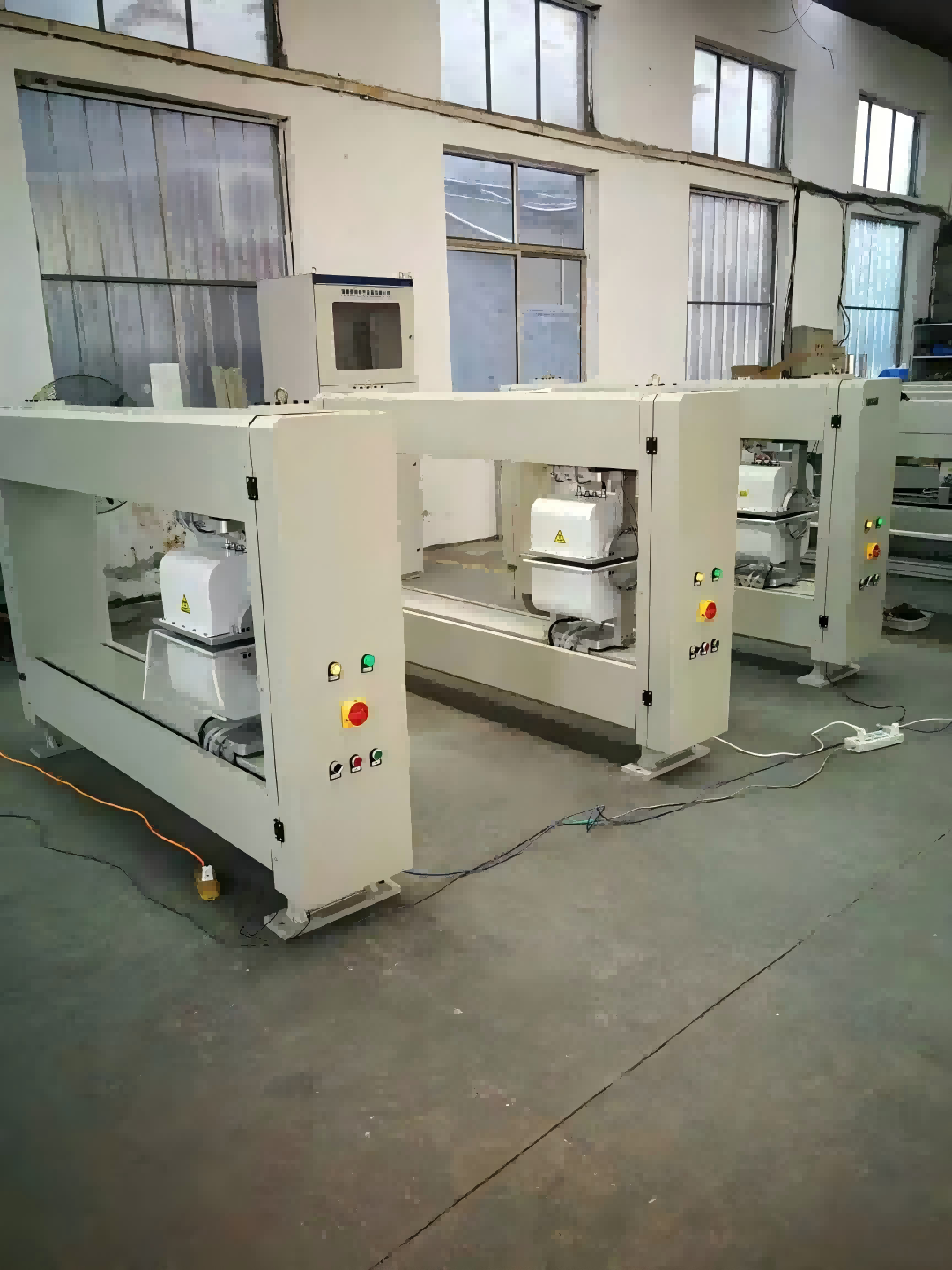

6)智能“O”扫描架具有机械自动补偿和探头定时自校准功能，精确的位置定位，实现横幅的精准控制。
6)Intelligent “O” scanning frame is of automatic compensation and probe timing self calibration function.
Precise location , to achieve precise control of banners.
7)薄膜厚度及形状自动控制；
7)Auto-control of film thickness and shape.
8）符合环保低放射性免检要求，不需要办理任何放射使用手续；
8)Comply with environmental requirements of low radioactive exemption, no need to go through any governme formalities for the radiation use.
三．金中德HHE-TJ2015(v1.2)操作软件主要功能介绍：

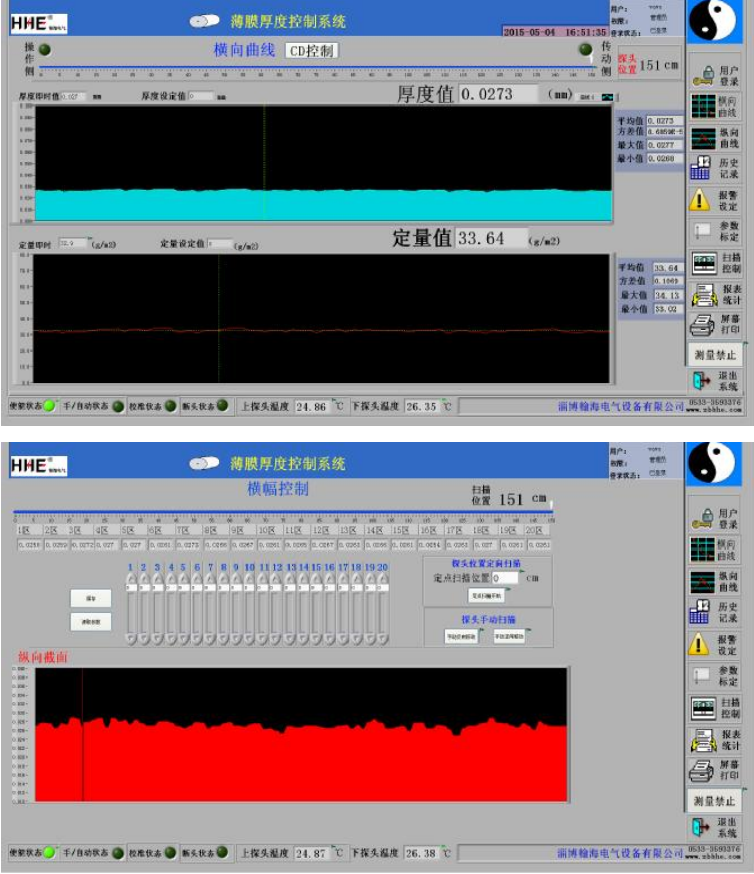

3.Main function introduction of HHE-TJ2015(v1.2) operating software
四、主要技术指标：
4.Main technical data:
①、定量检测范围：10-1000g/m2;
1)Weight measuring scope: 10-1000g/m2;
②、定量检测精度：+ 1.0g,
2)Weight measuring accuracy: + 1.0g.
③、定量测量误差:«0.5%；
3)Weight measuring deviation: «0.5%；
④、厚度测量范围：0.005-10mm;
4)Thickness measuring scope: 0.005-10mm;
⑤、厚度测量精度：优于+0.5um;
5)Thickness measuring accuracy: better than+0.5um.
五、服务内容：
5.Service contents
①、根据客户需求制定合理方案，项目负责人专项负则和客户的交流沟通；
1)To custom-made reasonable plan according to customer’s requirement, the project principal specifical responsible for communication with customers.
②、现场指导安装、调试和培训；
2)Site supervision of installation, commissioning and training.
③、判断仪器的使用问题，现场技术服务或者网络诊断服务等；
3)Judge the scanner’s using problem, site technical service or network diagnosis service, etc.
